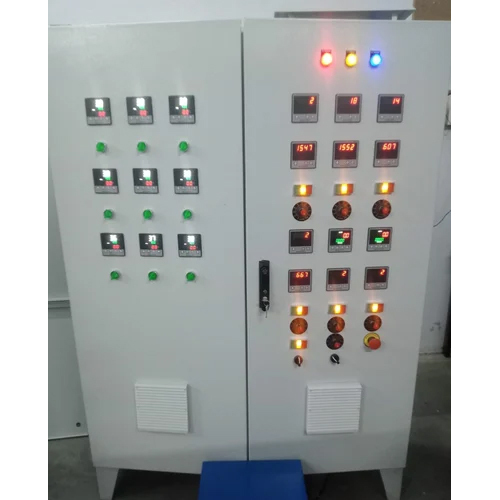

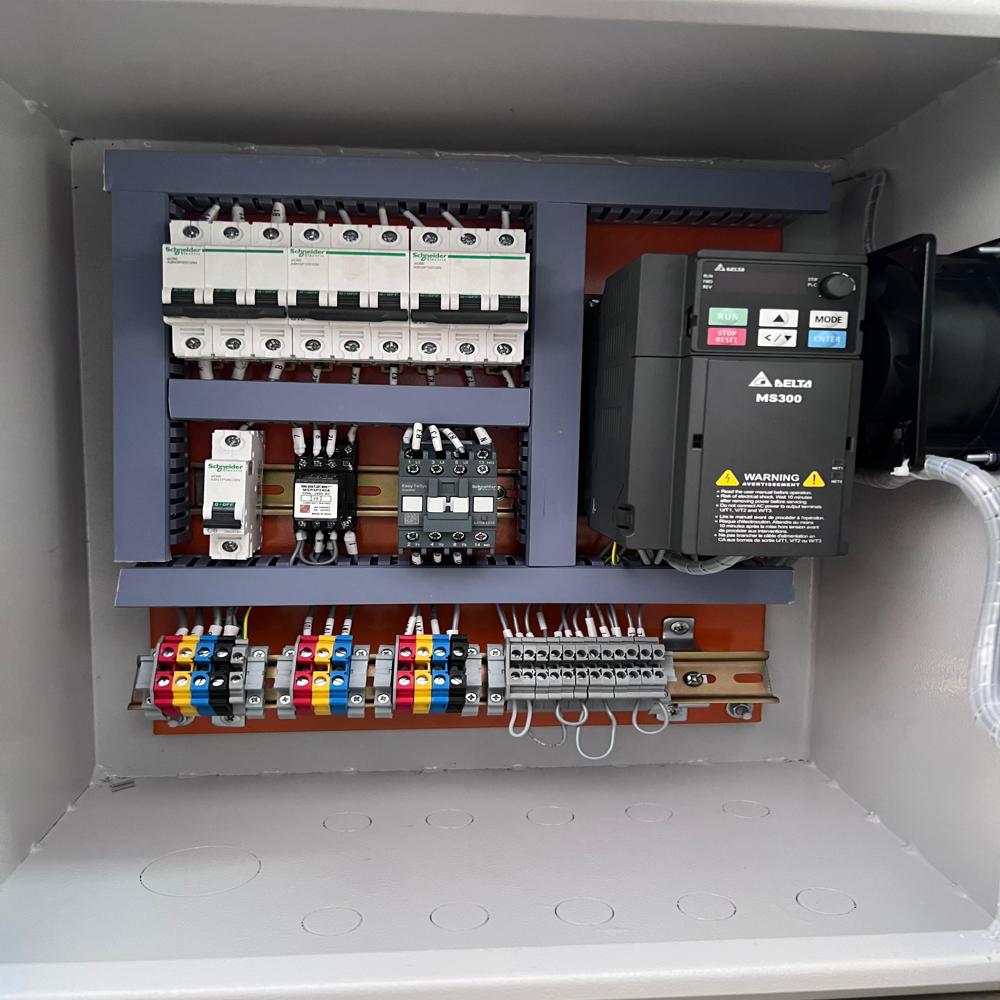

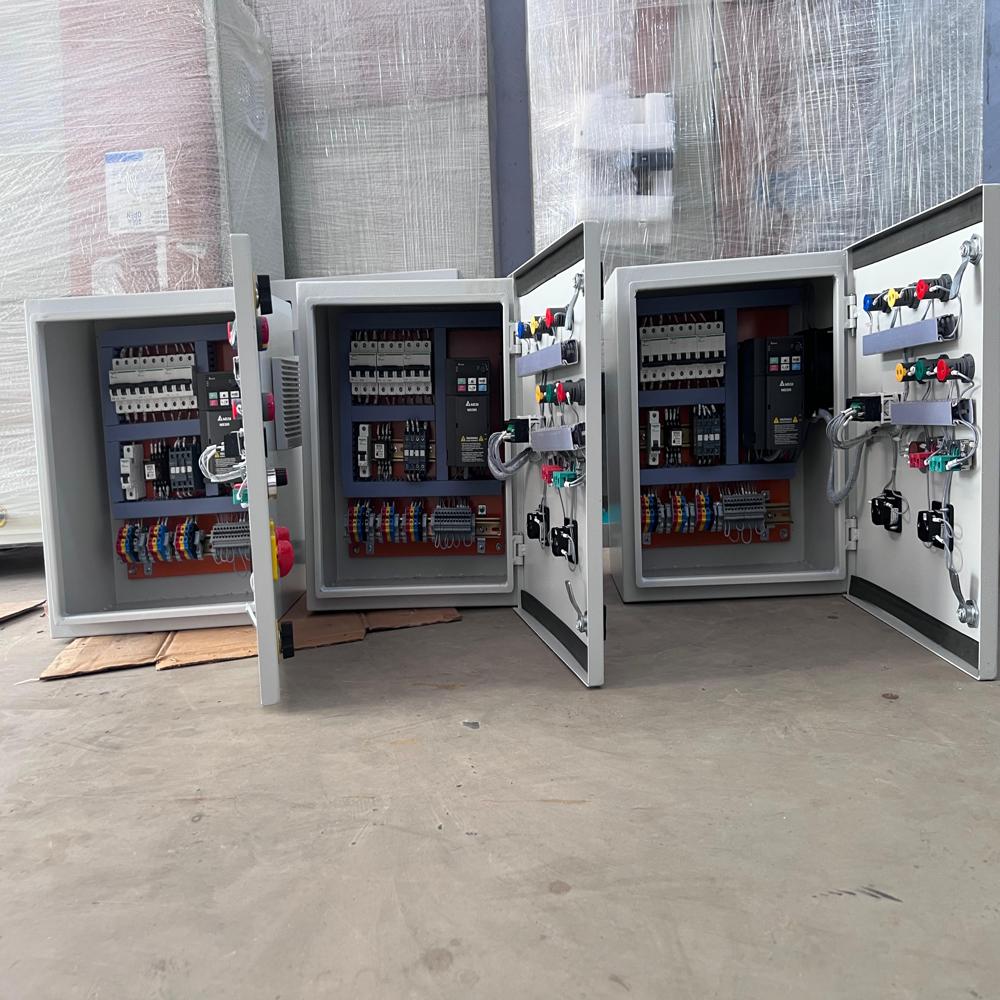

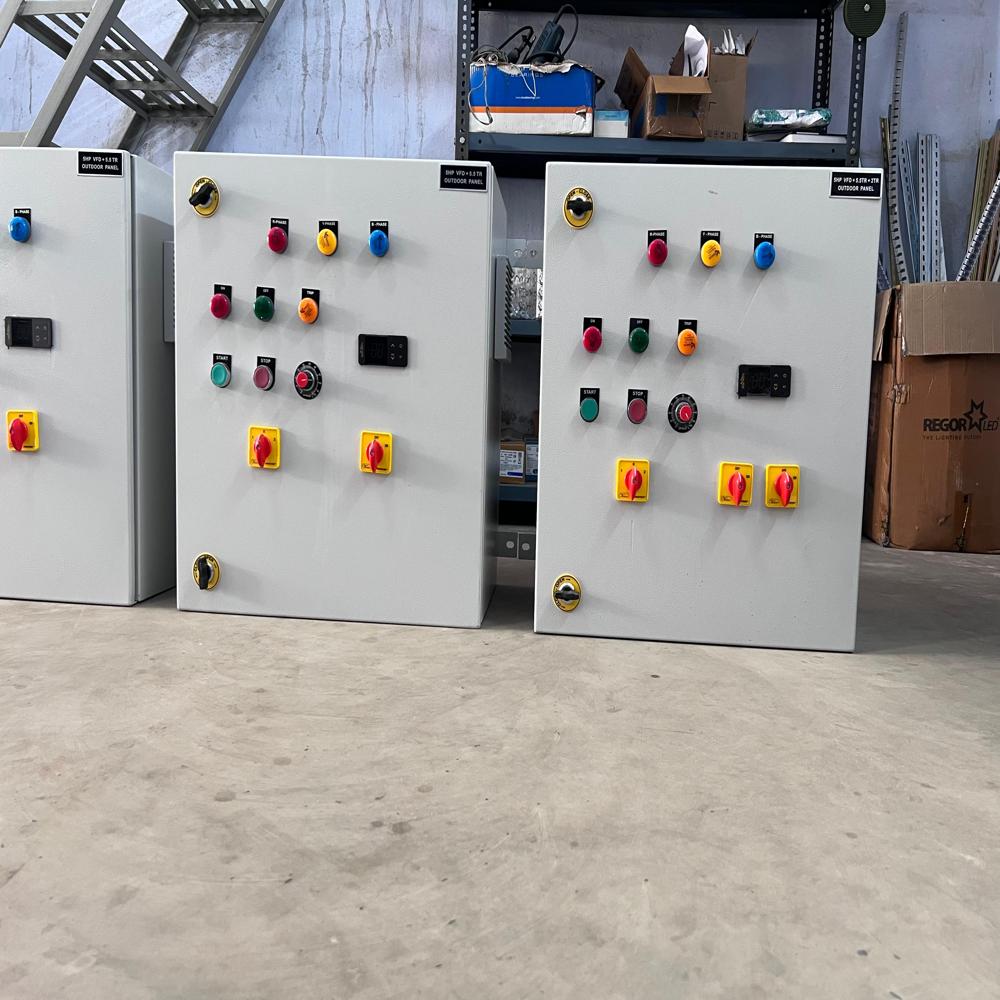

Control Panel For Cold Room

An Electrical Cold Room Control Panel is a centralized system designed to monitor and control the operation of refrigeration equipment in cold storage rooms. It ensures temperature regulation, safety, and efficient operation of the cold room, often used in food storage, pharmaceuticals, and industrial refrigeration.

Main Components:

1. Main Power Supply & MCBs (Miniature Circuit Breakers):

   • Supplies and distributes electrical power.

   • Protects circuits from overcurrent and short circuits.

2. Contactor & Overload Relays:

   • Controls the compressor, condenser fan, and evaporator fan motors.

   • Protects motors from overload conditions.

3. Digital Temperature Controller:

   • Displays and maintains the desired set temperature.

   • Controls compressor and defrost cycles based on temperature readings.

4. Thermostats & Sensors (RTD or NTC):

   • Senses room temperature and relays to the controller.

   • Ensures accurate temperature monitoring.

5. Compressor Control:

   • Starts/stops the compressor based on cooling demand.

   • Often includes a delay timer to protect against short cycling.

6. Defrost Timer or Defrost Controller:

   • Automates defrost cycles to prevent ice buildup on evaporator coils.

   • Can be time-based or temperature-sensor controlled.

7. Indicators & Alarms:

   • LED indicators for power, compressor running, defrost mode, etc.

   • Audible and visual alarms for high/low temperature, door open, power failure.

8. Manual/Auto Selector Switches:

   • Allows switching between manual and automatic operation modes for maintenance and troubleshooting.

9. Door Switch Interface:

   • Cuts off evaporator fans when the door is open to reduce warm air entry.

10. Control Wiring & Terminal Blocks:

    • Organized wiring ensures easy maintenance and troubleshooting.
