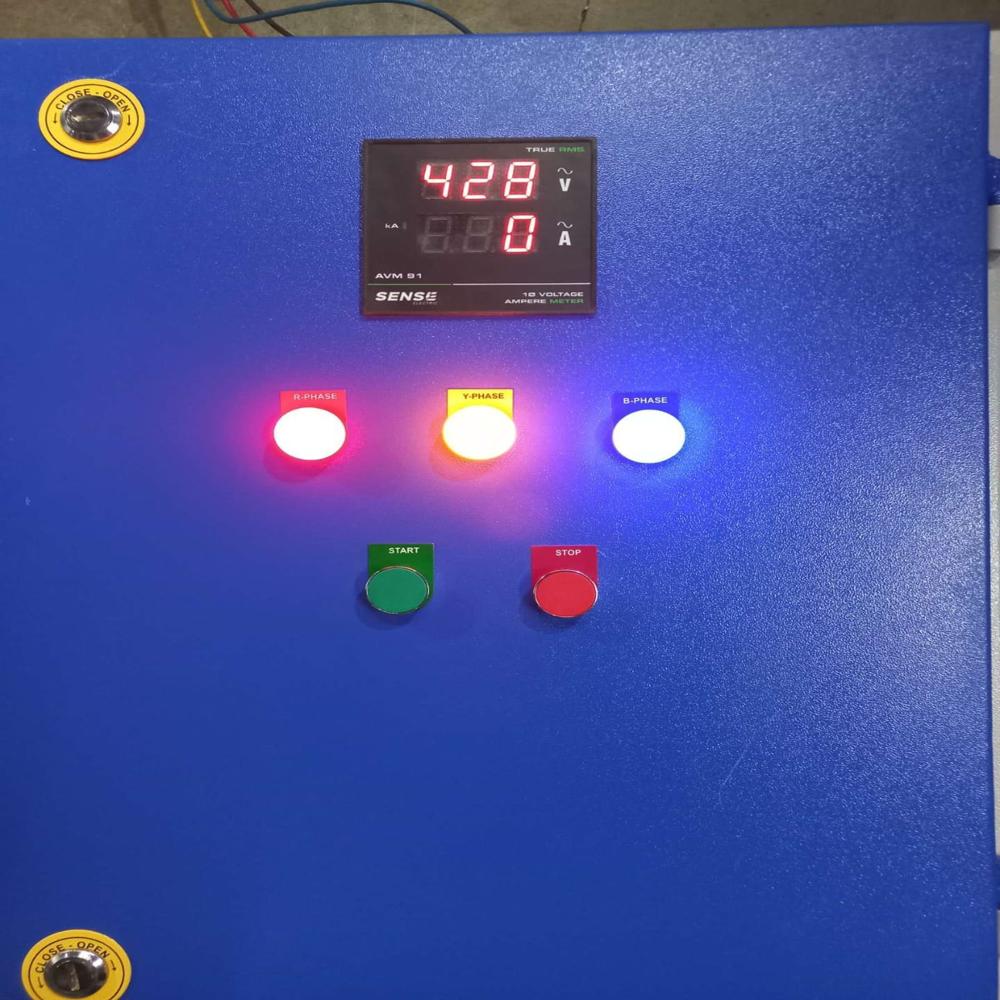

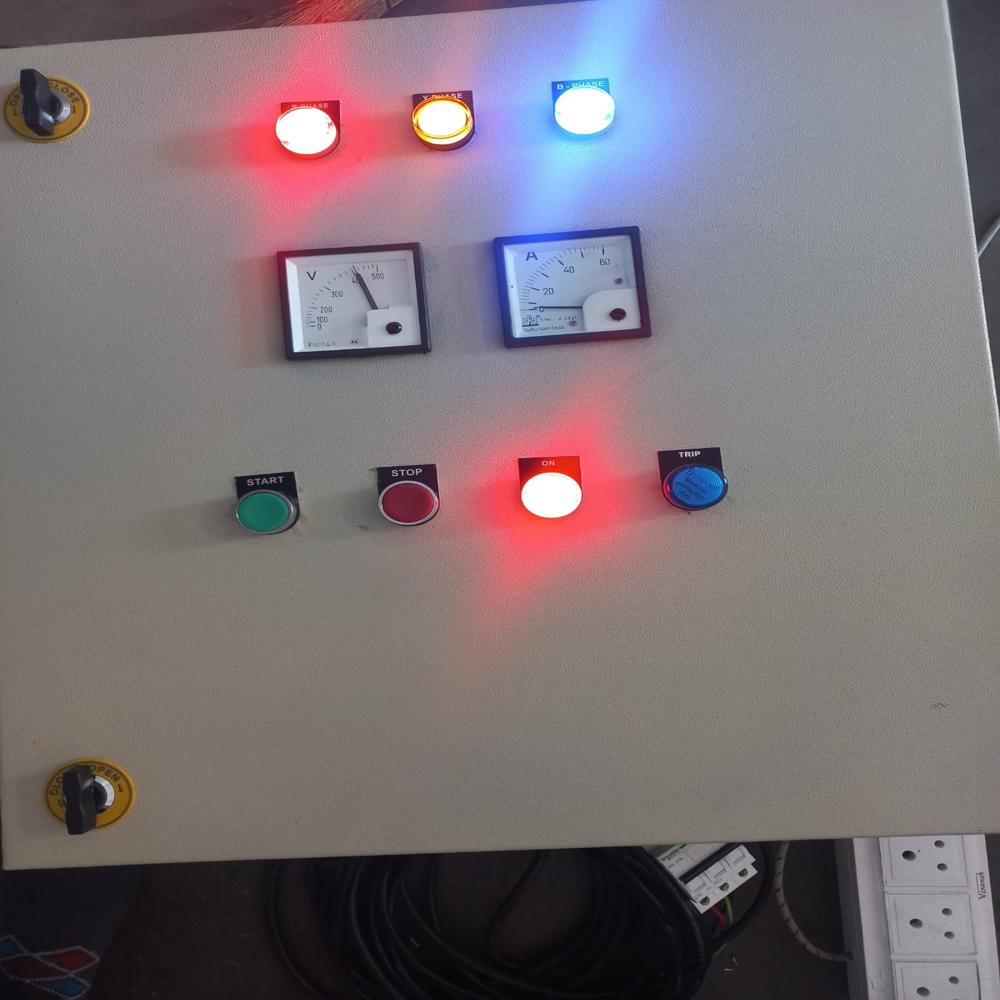

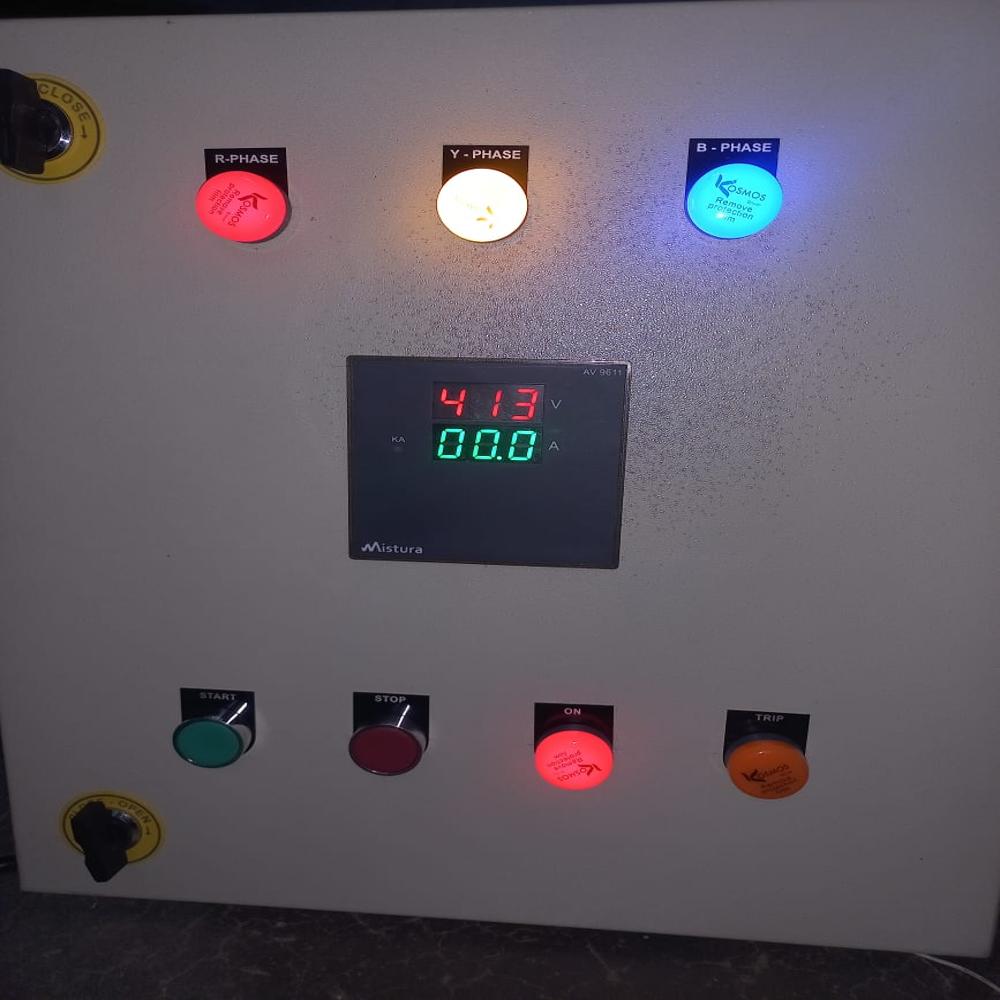

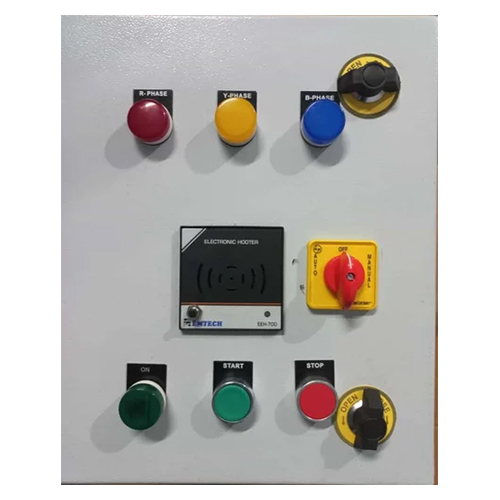

Star Delta Starter Control Panel

An MCC (Motor Control Center) Electrical Control Panel is an essential component in industrial and commercial power distribution systems, designed specifically for the centralized control, protection, and monitoring of multiple electric motors. It houses a combination of electrical devices such as motor starters, circuit breakers, overload relays, contactors, and control units, all enclosed in a metal cabinet.

The MCC panel is used to control the operation of motors through manual or automatic means, ensuring safe startup, operation, and shutdown. It helps protect motors from overloads, phase loss, short circuits, and other electrical faults, enhancing system reliability and minimizing downtime.

MCC panels can be categorized into fixed type or draw-out type and can include intelligent features like PLCs or communication interfaces for remote monitoring and control. They are commonly used in various industries including water treatment plants, manufacturing units, oil & gas facilities, HVAC systems, and more.

Each motor in the MCC panel typically has its own feeder with associated protection and control devices, allowing easy maintenance and scalability. Panels are designed according to international standards such as IEC, NEMA, or local electrical codes, ensuring safety and performance compliance.

FAQs of Star Delta Starter Control Panel:
